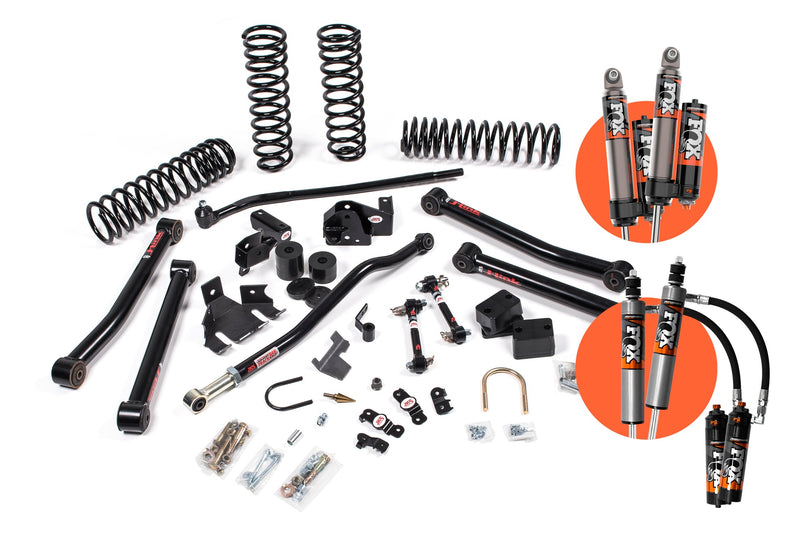

JKS 2007-2018 Jeep Wrangler JK 4WD 4 Door 3.5" J-Konnect Suspension Lift Kit with Fox 2.5 PES Remote Reservoir DSC Shocks JSPEC113PES

Note:

• 2012-2018 Models with 3.6L Pentastar motor will require exhaust modification for driveshaft clearance at full suspension droop, use JKS8150 exhaust extensions.
• Rubicon sway bar link hardware included in kit

Features:

• Front+Rear Dual Rate Coil Springs designed to great ride and improved performance across any terrain.
• Front+Rear Gas Shocks (JSPEC or FOX) specifically valved for this suspension system for improved performance on and off-road.
• Front Adjustable Track Bar and Rear Track Bar Bracket to correct axle positioning under vehicle.
• Front Sway Bar Quicker Disconnects and Brake Line Brackets to allow for increased offroad articulation.
• Front+Rear J-Link Lower Control Arms for improved strength and caster correction.
• Front+Rear Track Bar Support Braces to improve strength and protection.
• HD Drag Link Flip Kit w/ Track Bar Bracket to improve steering angles for better handling.
• Front+Rear Bump Stop Extensions to properly limit suspension up travel.

Tire Specification:

• Tire: 35x12.50
• Wheel: 16x8, 17x9, 20x9
• Backspacing: 4.5"

Other tire/wheel sizes can be used, however may require additional modifications.

Upgrade your Jeep Wrangler JK 4 Door with a J-Konnect 3.5" suspension system to fit larger tires and increase off road capabilities. The J-Konnect kit includes dual rate coil springs, tuned gas shocks, adjustable front track bar, J-Link lower control arms, and sway bar Quicker Disconnects. While the entry level J-Venture systems is designed for equal parts on-road handling and off-road capability, J-Konnect takes strength and performance a step further by adding front and rear fixed length J-Link lower control arms. These lower control arms not only add front caster and rear wheelbase, they are a serious upgrade to the strength over the factory control arms. Built 2” x .250-wall DOM tubing while offering better NVH isolation with large factory style rubber bushings at both ends. The end result is aggressive off-road performance and strength while maintaining excellent on-road manners. Get connected with J-Konnect.

Brand: JKS

• 2007-2018 Jeep Wrangler JK
