Note: 12-9016 - This is an add on part that was designed to retain the factory dual sport bike's hi/low pin out for their bar switch. The Hi-Beam Indicator will always be on when used with our Hi/Low KTM relay harness.

Features:

  • Satisfactions Guarantee – 30 Day Money Back Guarantee
  • Limited Lifetime Warranty – Complete Purchase Protection
  • uService – Replaceable Lenses And Optics
  • ClearView – All The Light, Right Where You Need It.
  • MoistureBlock – Waterproof, Rain Proof, Submersible
  • CopperDrive – Only LED Driven At 100%
  • 5000K Daylight – Less Driver Fatigue, Natural Color

Specifications:

  • Lumens: 9,500 Utilizing 4 Cree LEDs
  • Wattage/Amps:  80W / 5.50A
  • Dimensions: 4.43" x 3.65" x 4.43"
  • Weight: 2.45 lbs
  • LED Life Expectancy: 49,930 Hours
  • Front Lens:  Hardcoated Polycarbonate
  • Housing:  Hard Anodized & Powder Coated Cast Aluminum
  • Bezel: Billet Machined Aluminum
  • Hardware & Bracket Material: Stainless Steel
  • Exceeds MIL-STD810G (Mil-Spec Testing)
  • Built-In Overvoltage Protection
  • IP69K (Waterproof up to 9ft & Pressure Washable)
  • IK10 Compliant (Mechanical Impact Testing)

Includes:

  • XL80, LED KTM 2017-On Kit With 2017-2019 Headlight Shell

Patterns:
High Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)

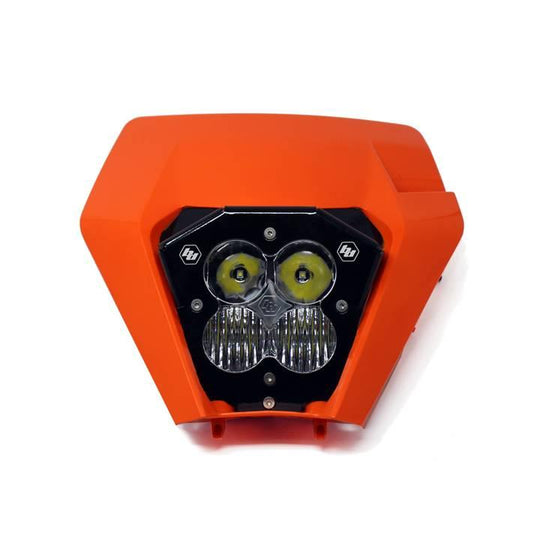

If you're looking to go night riding look no further, our Baja Designs drop in replacement headlight kit is a major upgrade from stock and features a rugged design. This headlight kit was designed with ample adjustability, and features a significant amount of vertical and horizontal spread for ultimate trail coverage. This specific model utilizes our XL80 which produces 9500 lumens and features a 20% dimming feature. Installation on this kit is as easy as installing a factory headlight, we provide a plug and play connector and all necessary hardware. Baja Designs offers an industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection. This kit comes preinstalled into a factory KTM Headlight mask (17-19). We offer this kit for the bikes that didn't come equipped with a headlight shell or for the customer who doesn't want to disassemble their factory unit.

Brand: Baja Designs
UPC: 308175302432
