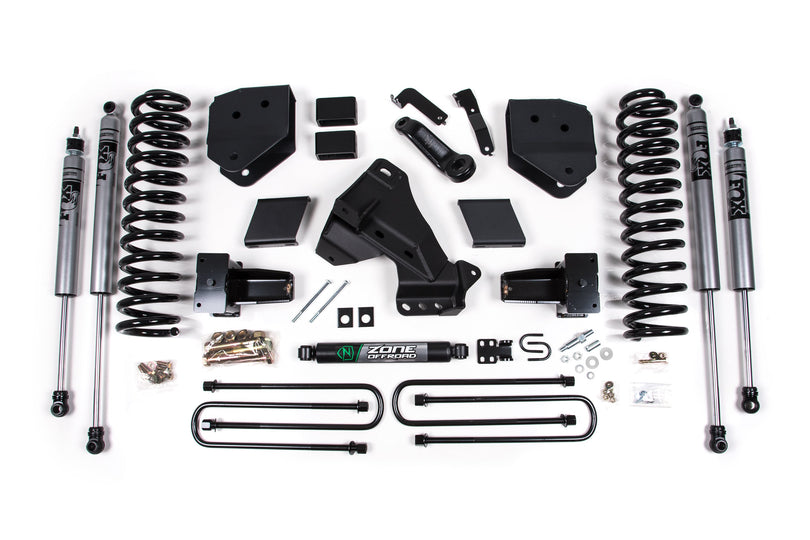

Zoneoffroad 2020-2021 Ford F350 Super Duty DRW 4WD Diesel 4" Lift Kit ZONF71F

Features:

• Heavy duty fabricated steel replacement radius arms that correct caster alignment while maximizing ground clearance.
• Forged pitman arm to correct steering angles.
• Heavy duty fabricated track bar relocation bracket to re-center front axle.
• Full length Diesel/ Gas specific coil springs for a smooth ride.
• Rear lift is specific to dually trucks using U-bolts that are sized correctly for length as well as block height to level the truck and a bump stop extension on the frame.

Specifications:

• Front Lift Method : Coil Spring & Drop Bracket
• Front Lift Height : 4"
• Rear Lift Method : Block
• Rear Lift Height : 3"
• Shocks Included : Yes

Important Notes:

• Dually Model Only.
• Diesel Model Only.
• Two-piece rear drive shaft? Add a carrier bearing drop kit to reduce post-lift drive-line angles and avoid / eliminate driveshaft vibration.
• Due to taller factory ride height, Tremor models will not net full advertised lift height. Final ride height will be the same as standard models

Wheel and Tire:

• 37x12.50 tires may require minor trimming.
• Factory wheels fit when paired with factory / original equipment tire size.


Zone Offroad now offers a suspension lifts for the 2020 Ford F350 Super Duty 4WD DRW trucks. These kits are based on the kits for the 2005-2021 Ford Super Duty, updated specifically for use on the DRW models. These new 4" lift kits are available for gas and diesel applications, as well as offered in standard (radius arm drop bracket) as well as replacement HD radius arm configurations to allow clearance for up to 37" tires. As with all Zone lift kits, these kits are backed by Factory Protection Plus, the comprehensive extended warranty giving you peace of mind on or off the road with a 5-year, 60,000-mile drivetrain warranty and Zone Offroad's limited lifetime warranty. Shop the best 4 Inch Lift Kit for Ford F350 Super Duty DRW (20-21) 4WD Diesel. Improve off-road performance with this high-quality lift kit.

Brand: Zoneoffroad

• 2020-2021 Ford F350 Super Duty
