AirDog 2015-2016 Chevrolet GMC PureFlow 6.6L Duramax FP-100-4G Lift Pump A4SPBC190

This Kit Does Not Require Any Fuel Tank Modifications For Installation.

Features:

• Small & Compact: Only 7″l X 10″t X 3.2″w
• Utilizes 4g Motor Technology
• Single Piece Pump Body
• Mounts To Frame: No Drilling Required!

Airdog Fp-4g Benefits:

• Removes Air And Vapor From Diesel Fuel
• Pure Diesel Fuel Reaching Engine
• High Flow Rates Of Fuel To Engine
• Longer Injector Life
• Increased Injection Pump Life
• Increased Fuel Economy
• Optimized Engine Performance
• Increased Torque Output
• Improves Throttle Response
• Utilizes The Same 4g Motor Technology Used In The Airdog Ii Systems

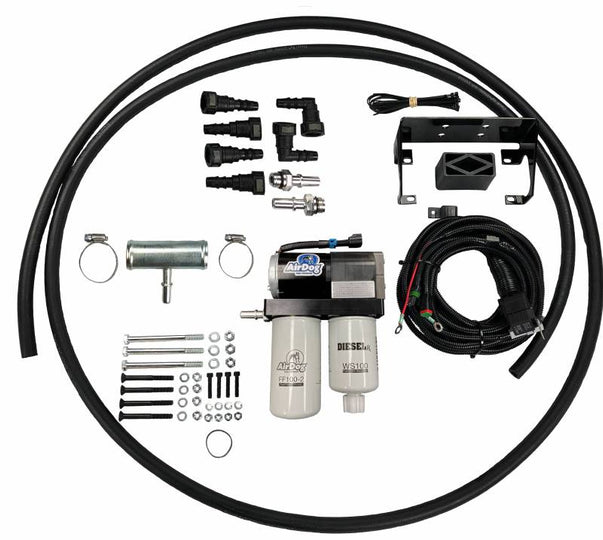

All-inclusive Installation Kit Includes:

• Relay Control Wiring Harness
• All Fuel Fittings Required
• Mounting Hardware
• 1/2″ Fuel Lines W/oem Style Quick Connect Fittings
• Airdog® Bracket & Spacer
• Plastic Ties
• Installation Manual

The Original Airdog Fp-100 4g A4spbc190 Is The Original Proven Air/fuel Separation System Duramax Lml Lift Pump Or Fuel Preporator. A Lift Pump System Is A Must Have For Your 2015-2016 6.6l Duramax Diesel. The Fuel System On Your Duramax Diesel Truck Is The Heart Of The Vehicle’s Performance And Reliability. This Low Pressure (Preset At 8-10 Psi) Lift Pump Mounts In Front Of The Fuel Tank To The Frame Jig. The Suction/fuel Supply Sides Hook Directly To The Factory Suction Port On The Fuel Module.  The Pressure Side Connects To The Factory Fuel Line Feeding The Cp4 Injection Pump Making The Install Very Straight Foward.  These Trucks Usually See The Most Benefit From An Airdog Lift Pump Fuel System.

The Airdog Fp-4g Duramax Fuel Pump Incorporates The Proven, Quiet, And Reliable 4g Motor Featured In The Airdog Ii Systems.  This 4-bearing Motor Technology Is Paired With The Original Fp High Flow Return Base And Pump Assembly To Maintain The Proven Benefits And Features Of The Original Airdog Model.

The Airdog Fp-100 Lift Pump Fuel System Will Solve The Infamous P0087 & P1093 Low Fuel Rail Pressure Codes By Supplying Your Cp4 Injection Pump With Fuel Rather Than Your Cp4 Doing Most Of The Work Pulling The Fuel Up From The Tank. This Positive Supply Of Purified Fuel Being Fed To Your Injection Pump Will Also Add Performance, Throttle Response And Longevity To Your Vehicle. Due To Extra Stress On Your Fuel System From Either High Mileage And/or Additional Performance Modifications Like A Tuner Or Larger Injectors, Your Injection Pump Can Become Weak Over Time Resulting In A Drop Of Performance, Reliability And Fuel Economy. The Supplied Water Separator (Ws100) And Fuel Filter (Ff100-2) That Mount To The Pump Filter Your Fuel Down To A 2 Micron Rating Which Surpasses The Stock Fuel Filters Filtration Capability.

This Airdog Fp-100gph Is Recommended For Trucks That Have A Stock To A Mildly Upgraded Fuel System (Meaning Mild Or Stock Injectors, Injection Pump And Tuning).

Brand: AirDog

• 2015-2016 Chevrolet GMC
